Still Point: Detached ADU

by EEREEDetached ADU

Pre-approved in New York City, New York, Manhattan and 4 more places, not in Los Angeles. Building it in Los Angeles would need the city's full plan review.

1
Bedrooms
1
Bathrooms
472.5
Sq Ft
15' x 31.5'
Footprint

About this design

New York embraces a wide range of family structures and housing models, yet this ADU is conceived as a flexible dwelling for one to two residents at different stages of life. Its streamlined form reduces construction costs, thereby easing the financial burden on homeowners, while allowing adaptation to diverse rear yards. The proposed exterior cladding provides a wide palette of colors and finishes, enabling the ADU to express its own identity while maintaining harmony with the existing home. Supported by multiple vendors and systems, it offers affordability and choice, while carefully composed openings maximize natural light, ventilation, and energy efficiency. Pre-approved ADU design from New York City's “ADU for You” Pre-Approved Plan Library (NYC Department of Housing Preservation and Development). Designed by EEREE. The pre-approved plan set is obtained from the design professional who owns it; a site-specific review and filing with the NYC Department of Buildings is still required before construction.

  • Style: Contemporary
  • Dimensions: 31.5' x 15' x 15'
  • ADA Accessible

Supporting Documents

Publicly available

Supplemental materials published by NYC HPD for this design: the architect's design questionnaire and reference geometry. These are not the pre-approved construction drawing set; the full plan set is obtained directly from the architect. A site-specific review and filing with the NYC Department of Buildings is required before construction.

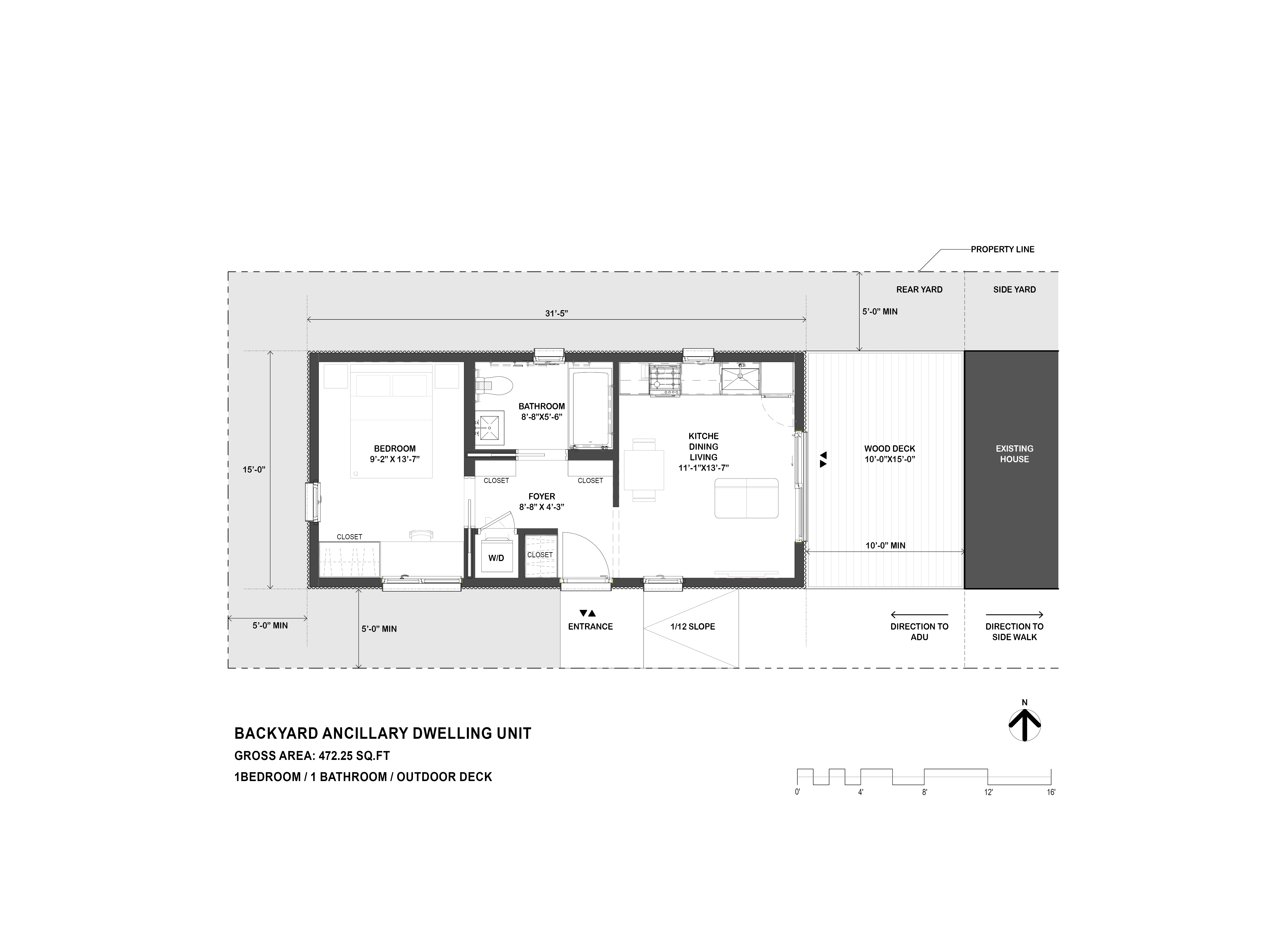

Plan Details

ADU TypeDetached
Building ShapeRectangular
Construction TypeStick-built
Architectural StyleContemporary
Architectural FeaturesOutdoor Deck
AppliancesDishwasher Washer/Dryer Refrigerator
Exterior Dimensions15′ W × 31.5′ L × 15′ H
Ceiling Height: Bathroom8 ft
Ceiling Height: Living Space8.5 to 13 ft
Ceiling Height: Sleeping Space8.5 to 13 ft

Materials & Finishes

Facade MaterialCorrugated metal panel
General FlooringPower trowel finish, seal with water-based sealer Power trowel finish seal with water-based sealer
Kitchen FlooringPower trowel finish, seal with water-based sealer Power trowel finish seal with water-based sealer
Bathroom FlooringTile

Accessibility

Is the ADU designed with architectural barriers such as steps at the entrance or between rooms?Yes
Is the ADU designed with assistive railings (grab bars) installed in the bathroom?Yes
Is the ADU designed to accommodate a wheelchair users?Yes

Sustainability

Mechanical Systems & Building Envelope

Is the ADU designed to incorporate a heat pump that operates with higher-than-minimum equipment efficiencies according to HPDs Electric Heating Policy?Yes
Is the ADU designed to incorporate drain-water or wastewater heat recovery?Yes
Does the ADUs insulation exceed the minimum requirements for New York City Energy Conservation Code (NYCECC)?Yes
Is the ADU designed to harvest, treat, and reuse greywater to meet a portion of the project’s non-potable water needs?Yes
Is the ADU designed with windows with a U-Factor of ≤ 0.27?Yes
Is the ADU designed with windows with a Solar Heat Gain Efficient (SHGC) of ≤ 0.4?Yes
What is the Window to Wall Ratio (WWR) of the ADU?Not Applicable

Material Sourcing & Circularity

Is the ADU design specified to use building materials or products have been extracted, harvested or recovered, as well as manufactured within a 500-mile radius of the project site?Yes
If the ADU is designed to use wood as a construction material, is it designed to use wood from a sustainable forest?Yes
If the ADU is designed to use concrete as a construction material, is it designed to use low-carbon concrete?Yes
If the ADU is designed to use steel as a construction material, is it designed to use recycled steel and/or steel from electric arc furnaces (EAFs)?Yes

Design Professional

EEREE
Registered Design Professional: Boram Lee Jung
Brooklyn, NY Brooklyn NY

Contact the Registered Design Professional for details on building this pre-approved design on your lot.

3D Massing Model

An interactive 3D model of the design’s massing (its overall form and scale). Drag to orbit, scroll to zoom.

Drag to orbit · scroll to zoom

Pre-Approved / Standard Plan Cities

New York CityNew YorkManhattanBrooklynQueensBronxStaten Island

Showing this plan on your lot at

Los Angeles, CA

Site Plan

See how this design fits on your lot. Drag the ADU footprint to explore placement options.

Click and drag the ADU to reposition
1ADU15' x 31.5'
Legend
Lot Boundary
Setbacks (5' side/5' rear)
Structure Buffer (10')
Existing Structures
ADU (15' x 31.5')
Setback Conflict
Valid Placement
ADU fits within the buildable zone, clear of all setbacks and existing structures.
Measured
Side lot line154'-1" / 5' min
Rear lot line75'-1" / 5' min
Side lot line167'-4" / 5' min
Side lot line376'-1" / 5' min
Side lot line376'-2" / 5' min
To nearest structure10'-1" / 10' min

Shortest distance from the unit to each controlling line, from the county parcel map. Good to a foot or two; not a survey.

Measurements and setbacks
Property
Lot Size50,000 sq ft
CityCA
Structures2
ADU Design
Footprint15' x 31.5'
Area472.5 sq ft
Height15'
Setbacks
Front Yard15 ft
Side Yard5 ft
Rear Yard5 ft
From Structure10 ft
Max Height16 ft

This site plan is for preliminary planning only. Setback data is based on general municipal guidelines and may not reflect site-specific conditions, easements, or recent zoning changes. Always consult with a licensed professional before proceeding.

Structures on this lot

A garage or shed in the way? Mark it to be removed and see the lot without it.

  • Main houseStays

3D Site View

The ADU at your chosen placement alongside the existing structures on the lot. The navy outline marks the lot boundary; the gray outline marks the buildable area inside the setbacks. Move or rotate the ADU above and the 3D view follows.

Drag to orbit · updates as you move the ADU

Free. Chris Koss, AIA replies by email within 2 business days.

Your numbers

What this plan could cost and bring in on your lot. Estimates, not quotes.

Estimated all-in cost

$104,000 to $144,000

Construction
$100,000 to $140,000
City permit fees
$4,154

Before a site visit. Excludes utility upgrades, site work and borrowing costs. Details below.

Estimated loan payment

Enter your rate

Estimated rent

Not available yet

%
$

Get the rent estimate to compare it with a payment.

A-du does not quote rates. This is not an offer of credit.

About this estimate

The loan is the middle of the all-in cost above, less any down payment you enter. Principal and interest only. A-du does not quote rates. Your rate, term and eligibility depend on the lender and your finances. Financing is provided by third-party lenders, subject to their approval.

Estimated Build Cost Range

Based on square footage and regional construction averages

Low estimate$100,000
High estimate$140,000

A speculative estimate from the plan's size and regional construction costs. Confirm it with a licensed general contractor or the plan's architect before making any financial decisions.

How this is estimated

This range is a speculative estimate based on typical construction costs where this plan is approved, including design, permits and fees, and on the plan's size. Smaller ADUs cost more per square foot, because a kitchen, a bathroom and utility connections cost about the same at any size. It does not account for site conditions or material selections. Actual costs must be validated with a licensed general contractor or the plan's architect before making any financial decisions.

Permit Fees

Jurisdiction

Detected from address

Some West LA and Studio City pockets are unincorporated LA County. Confirm your jurisdiction with the local building department if you are near a boundary.

Estimated Total Permit Fees$4,154
Based on a construction valuation of $108,675 ($230/sqft × 472.5 sqft).

Building Permit

  • Building Permit Fee
    LAMC 91.107 Table 1-A
    $1,616.06

Plan Check

  • Plan Check Fee
    LAMC 91.107.6
    $1,454.45

Sub-Permits

  • Electrical Sub-Permit
    LAMC 93.0205
    $196.00
  • Plumbing Sub-Permit
    LAMC 94.0203
    $230.00
  • Mechanical Sub-Permit
    LAMC 95.115
    $170.00

Hillside Project

  • Grading Permit
    LAMC 91.7000s (Hillside Ordinance Area)
    Not applicable: parcel in hillside is false.
    $0.00
  • Hillside Plan Review
    LAMC 91.7016 + LADBS Hillside Plan Check policy
    Not applicable: parcel in hillside is false.
    $0.00

Fire Department

  • Fire Sprinkler Plan Review
    LAMC 57 (LAFD)
    SB 1226 exempts ADUs <=1200sf attached to a sprinklered SFD.
    $0.00

City Surcharges

  • General Plan Maintenance Surcharge
    LAMC 98.0418(b)
    $214.94

State Surcharges

  • CA Building Standards Commission Surcharge (SB 1473)
    CA Health & Safety Code 18931.6 (SB 1473, 2008)
    $4.35
  • Strong Motion Instrumentation (SMIP) Fee
    CA Public Resources Code 2705 (Strong Motion Instrumentation Program)
    $14.13

Administrative

  • Records Management
    LADBS Fee Schedule
    $160.00

Construction Tax

  • Construction Tax
    LAMC 21.10
    $94.50

Utility Connections

  • Sewer Facility Charge
    LAMC 64.11.3
    ADU connecting to existing sewer lateral; no new SFC.
    $0.00
  • New Water Service Connection
    LADWP Water Rules + Tariff
    Not applicable: needs new water service is false.
    $0.00
  • New Electric Service Connection
    LADWP Electric Rules + Service Standards
    Not applicable: needs new electric panel is false.
    $0.00

Impact Fees

  • Impact Fee
    LAMC 19.17 + CA Gov. Code 66311.5(c)(1) (750 sqft exemption)
    Waived under Gov. Code 66311.5(c)(1) for ADUs at or below 750 sqft.
    $0.00
  • School District Development Fee
    CA Education Code 17620; Gov. Code 66311.5(c)(3); LAUSD Level 1 rate
    Exempt: ADUs under 500 sqft do not pay school district fees (Ed. Code 17620, Gov. Code 66311.5(c)(3)).
    $0.00

Estimate based on current fee schedules as of 2026-01-01. Final fees are set at plan check. For LA City projects, the official LADBS calculator lives at netinfo.ladbs.org/feecalc.nsf.

Rental Income Estimate

Build Location

Los Angeles, CA

Financing Your Build

Most homeowners finance ADU construction rather than paying cash. These are the common routes. Talk to a lender you choose; A-du does not arrange loans.

Renovation & ADU construction loans

Lenders that underwrite on your home’s value after the ADU is built, often the best fit when current equity doesn’t cover the build.

Home equity (HELOC / home equity loan)

For owners with substantial equity, a line of credit against the home is typically the simplest and fastest route to fund construction.

Grants & public programs

California's CalHFA ADU Grant has been out of funds since December 2023. Some cities run their own ADU loans or fee waivers, so check yours before you borrow.

Before you apply

  • You live in the home: most ADU loans are for a primary residence.
  • Plans, a contractor and a detailed cost estimate.
  • Permits, or a clear path to them. Some lenders want them before you apply.
  • Membership, if the lender is a credit union.

Lenders that count ADU rent toward your income count up to 75% of it. The rent shown on this page is a cash-flow view, not what a lender will count.

What each lender asks for, by area

Start your project file

One file with what lenders ask to see about your ADU: the plan, a test fit on your lot, the cost and a rent estimate.

$495, credited toward permitting. The first step is free.

See what lenders ask for. Lend on ADUs? List your business free.

ADU programs in New York City

ADU for You

Through HPD's ADU for You, Neighborhood Restore offers free technical assistance to help New Yorkers plan, finance and build a legal ADU.

Learn more

From the official program pages, checked November 6, 2026. Funding, terms and eligibility can change, so confirm with the program before you rely on it.

Your path to a finished ADU

Who handles each step for this plan.

  1. 1
    Check your lot
  2. 2
    Get the plan
  3. 3
    Get the permit
  4. 4
    Build
  5. 5
    Rent it out
  1. 1
    Check your lot

    Free. Chris Koss, AIA checks whether it could fit your lot.

  2. 2
    Get the plan

    Free from NYC HPD.

  3. 3
    Get the permit

    Take it to your local building department.

  4. 4
    Build

    Hire a licensed contractor.

  5. 5
    Rent it out

    List it on A-du for free once it passes final inspection.

    See what it could rent for

About the designer

EEREE
EEREE

Plan contact: Boram Lee Jung

Source & Availability

Important Information

Pre-Approval Status: Confirm pre-approval with your local building department before you rely on it.

Site Review: Pre-approval covers the building design, not your lot. Setbacks, fire department access, firefighting water supply and wildfire hazard zone rules are checked for your address at plan check.

Platform Role: A-du is a technology platform connecting homeowners with design vendors. We do not provide architectural, engineering, or construction services.
